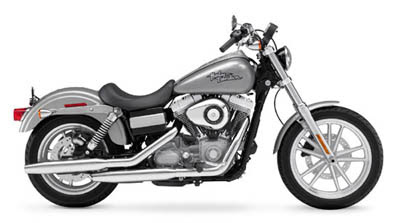

Harley-Davidson FXD Dyna Super Glide, 2009
The Super Glide offers Twin Cam 96 power under a solo seat, cradled in a nimble Dyna chassis. This most affordable example of the Big Twin breed is an inviting canvas for extreme and creative customization.
The Harley-Davidson Dyna family has its roots in the factory-custom revolution of the 1970s. These five motorcycles pair Big Twin performance with an extended FX front end. Dyna has always had a reputation for great handling, with loads of attitude that appeals to riders with a strong inclination for independent thinking.
All Dyna models feature a new silver-face speedometer with fuel range read-out, a new low-profile front fender and a new fuel sender. A 1584 cc Twin Cam 96 powertrain with Electronic Sequential Port Fuel Injection (ESPFI) mated to the 6-Speed Cruise Drive transmission cranks out 92 ft.-lbs. of torque at 3000 rpm. Common Dyna characteristics include the under-seat battery box, exposed rear shock absorbers, and a classic Fat Bob fuel tank with console.
New on Dyna for 2009:
Silver-face speedometer with fuel range read-out: The new Dyna speedometer stands out in silver and adds a functional fuel range read-out.
New fuel sender: The speedometer range read-out is the result of a new fuel sender.
Low profile front fender: The gap between tire and fender tightens with the cool look of a new low-profile front fender.
FXD Dyna Super Glide features:
Vibration isolated Twin Cam 96 engine
6-speed Cruise Drive transmission
Silver powder-coated engine and polished rocker boxes
New silver-faced speedometer with range countdown
New low profile front fender
New fuel sender
New tank graphics
Chrome Staggered Shorty Dual exhaust
160 mm-17 rear / 100 mm-19 front tires
Silver 10-spoke Cast Aluminum wheels
Wrap-around rear fender
4.8-gallon Fat Bob fuel tank
Low-rise handlebar
29-degree fork angle
Handlebar-mounted speedometer
Solo seat
Mid-mount foot controls
Optional Smart Security System
The Dimensions
Length 92.80 in. (2357.12 mm)
Overall Width 36.70 in. (932.18 mm)
Overall Height 46.80 in. (1188.72 mm)
Seat Height:
• Laden2: 26.60 in. (675.64 mm)
• Unladen: 27.60 in. (701.04 mm)
Ground Clearance 5.32 in. (135.13 mm)
Rake (steering head) 29°
Fork Angle 29°
Trail 4.70 in. (119.38 mm)
Wheelbase 64.20 in. (1630.68 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear):
• Front – D401F 100/90-19 57H
• Rear – K591 160/70B17 73V
Fuel Capacity 4.80 gal. (18.17 L) (warning light at approximately 0.9 gal.)
Oil Capacity (w/filter) 3 qts. (2.84 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain
Case Capacity11
1 qts. (0.95 L)
The Harley-Davidson Dyna family has its roots in the factory-custom revolution of the 1970s. These five motorcycles pair Big Twin performance with an extended FX front end. Dyna has always had a reputation for great handling, with loads of attitude that appeals to riders with a strong inclination for independent thinking.
All Dyna models feature a new silver-face speedometer with fuel range read-out, a new low-profile front fender and a new fuel sender. A 1584 cc Twin Cam 96 powertrain with Electronic Sequential Port Fuel Injection (ESPFI) mated to the 6-Speed Cruise Drive transmission cranks out 92 ft.-lbs. of torque at 3000 rpm. Common Dyna characteristics include the under-seat battery box, exposed rear shock absorbers, and a classic Fat Bob fuel tank with console.
New on Dyna for 2009:
Silver-face speedometer with fuel range read-out: The new Dyna speedometer stands out in silver and adds a functional fuel range read-out.
New fuel sender: The speedometer range read-out is the result of a new fuel sender.
Low profile front fender: The gap between tire and fender tightens with the cool look of a new low-profile front fender.
FXD Dyna Super Glide features:
Vibration isolated Twin Cam 96 engine
6-speed Cruise Drive transmission
Silver powder-coated engine and polished rocker boxes
New silver-faced speedometer with range countdown
New low profile front fender
New fuel sender
New tank graphics
Chrome Staggered Shorty Dual exhaust
160 mm-17 rear / 100 mm-19 front tires
Silver 10-spoke Cast Aluminum wheels
Wrap-around rear fender
4.8-gallon Fat Bob fuel tank
Low-rise handlebar
29-degree fork angle
Handlebar-mounted speedometer
Solo seat
Mid-mount foot controls
Optional Smart Security System
The Dimensions
Length 92.80 in. (2357.12 mm)
Overall Width 36.70 in. (932.18 mm)
Overall Height 46.80 in. (1188.72 mm)
Seat Height:
• Laden2: 26.60 in. (675.64 mm)
• Unladen: 27.60 in. (701.04 mm)
Ground Clearance 5.32 in. (135.13 mm)
Rake (steering head) 29°
Fork Angle 29°
Trail 4.70 in. (119.38 mm)
Wheelbase 64.20 in. (1630.68 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear):
• Front – D401F 100/90-19 57H
• Rear – K591 160/70B17 73V
Fuel Capacity 4.80 gal. (18.17 L) (warning light at approximately 0.9 gal.)
Oil Capacity (w/filter) 3 qts. (2.84 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain
Case Capacity11
1 qts. (0.95 L)
Weight:
• As Shipped 632 lbs. (286.67 kg)
• In Running Order 663 lbs. (300.73 kg)
• Gross Vehicle Weight Rating 1085 lbs. (492.15 kg)
• Gross Axle Weight Rating:
• Front 390 lbs. (176.90 kg)
• Rear 695 lbs. (315.25 kg)
The Engine
Engine3 Air-cooled, Twin Cam 96™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.750 in. x 4.380 in. (95.25 mm x 111.25 mm)
Displacement3 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System9 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass Media, washable
Lubrication System Pressurized, dry-sump
The Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive10 Belt, 32/66 ratio
Clutch 9-plate, wet
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall): U.S. HDI JPN
• 1st 9.312 9.312 9.030
• 2nd 6.421 6.421 6.266
• 3rd 4.774 4.774 4.630
• 4th 3.926 3.926 3.807
• 5th 3.279 3.279 3.179
• 6th 2.790 2.790 2.706
The Chassis
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast,
and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Forks 49 mm with polished aluminum fork triple clamp and dual-rate springs
Rear Shocks Coil-over shock
Wheels4: Silver, 10-Spoke Cast Aluminum
• Front 19 in. x 2.50 in. (482.60 mm x 63.50 mm)
• Rear 17 in. x 4.50 in. (431.80 mm x 114.30 mm)
The Brakes:
• Caliper Type- 4-piston fixed front, and 2-piston torque-free floating rear
• Rotor Type- Patented, uniform expansion rotors (floating, front only)
(diameter x width):
• Front (floating) 11.80 in. x .20 in. (299.72 mm x 5.08 mm)
• Rear 11.50 in. x .23 in. (292.10 mm x 5.84 mm)
The Suspension Travel:
• Front Wheel 5 in. (127 mm)
• Rear Wheel 4.10 in. (104.14 mm)
The Performance
Engine Torque5 (per SAE J1349):
• North America 92 ft. lbs. @ 3000 rpm (124.75 NM @ 3000 rpm)
The Lean Angle (per SAE J1168):
• Right 32°
• Left 34°
Fuel Economy7
(EPA urban/highway test) 35/54 mpg (6.72/4.36 L/100 km)
The Electric
Battery (per Battery CouncilInternational Rating)
Sealed, maintenance-free, 12V,19-amp/hour, 270 cca
Charging Three-phase, 40-amp system (493W @ 13.5V, 2000 rpm, 540W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Tail/Stop Lights 8W/28W (5W/21W)
• Turn Signal Lights 28W (21W) self-canceling
• Indicator Lamps- High beam, directional light bar, neutral, low oil pressure, engine diagnostics,
turn signals, security system6 (optional), 6-speed, low fuel warnings
Electric Power Outlet Standard
